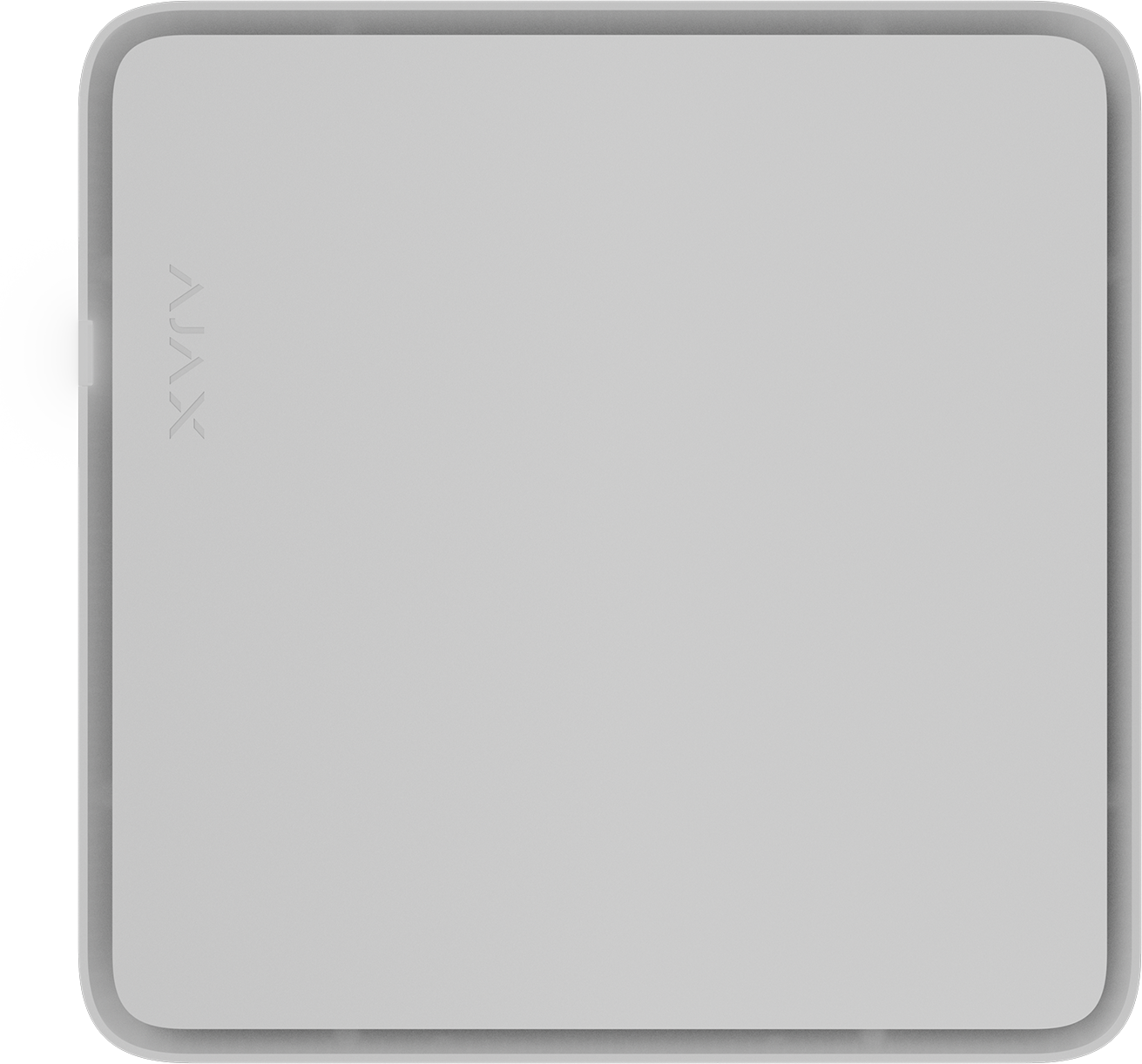

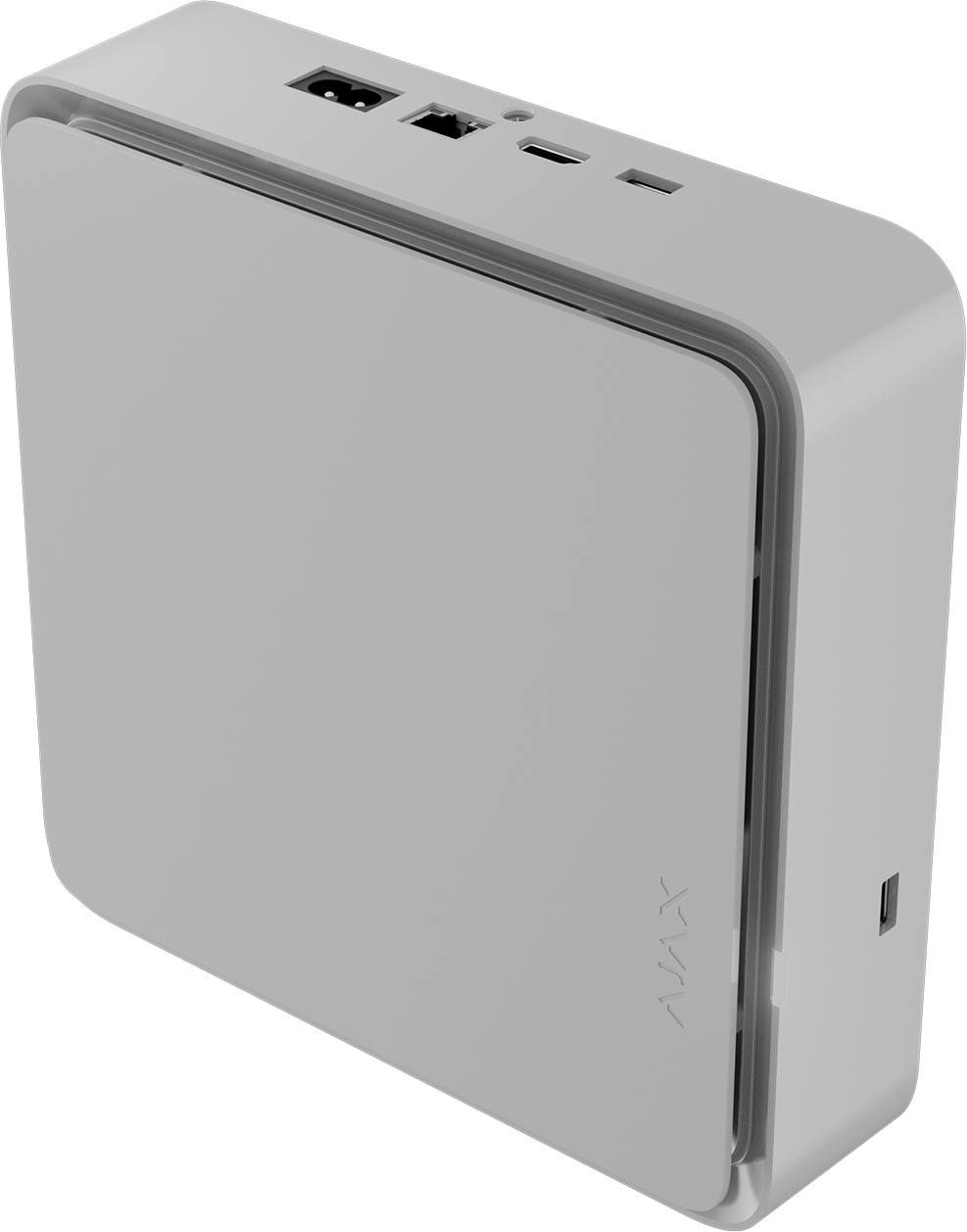

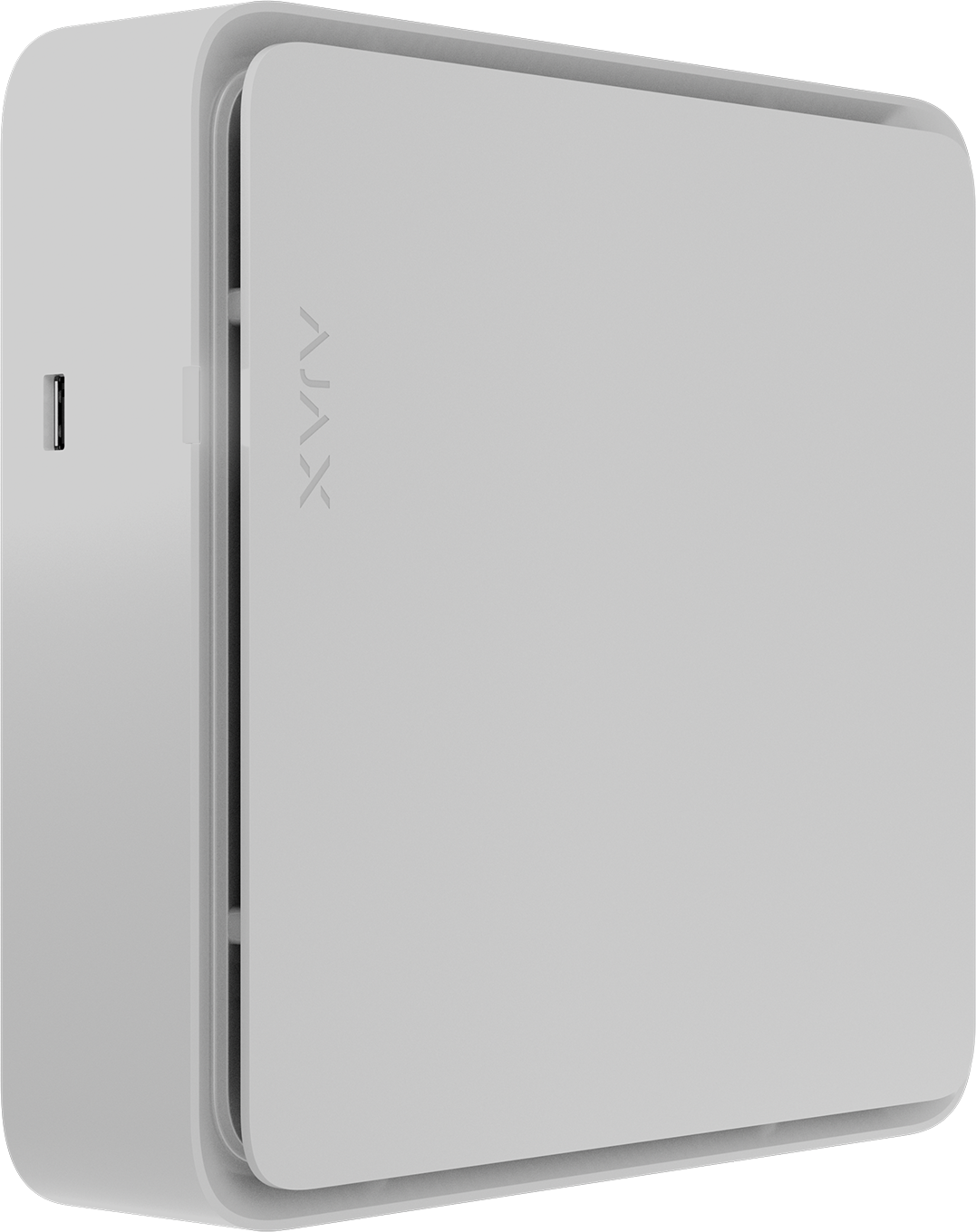

Ajax NVR HAC 16-kanavainen tallennin, valk. #134506
Ei varastossa, vain jälkitoimituksena
Kirjaudu nähdäksesi hinta
Pidä silmällä Ajaxin sekä kolmannen osapuolten kameroiden tallenteita Ajax NVR-tallentimen avulla!
NVR H -sarja tarjoaa entistä joustavamman videovalvontakokemuksen – mukavasti työpöydän ääressä tai tien päällä. HDMI-lähdön ansiosta NVR-laitteet voivat näyttää reaaliaikaista ja arkistoitua materiaalia suoraan paikallisella näytöllä, vaikka kohteessa ei olisi internetyhteyttä. USB-liitännät mahdollistavat näppämistön, hiiren tai ulkoisen kiintolevyn liittämisen.
Huom! Käytä tallentimessa kiintolevyä, jonka virrankulutus on enintään 7 W.
Ominaisuudet:
- Yhteensopivuus: kaikki Ajax Hub -keskukset, Ajax Space
- IP-kameroita: maks. 16 kpl (ONVIF/RTSP)
- Resoluutio: maks. 8 Mpx
- Tallennusnopeus: 80 Mbps
- Pakkaustekniikka: H.265/H.264
- Kiintolevy: SATA 3,5″, jopa 16 Tt (ei sisälly), virrankulutus maks. 7 W
- Peukalointisuojaus laitteen irrottamista vastaan
- 1 x RJ45 Ethernet 10/100 Mbps
- 1 x HDMI-lähtö (1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720)
- 2 x USB 2.0 Type-A (taka- ja sivupaneelissa)
- Virransyöttö: 110-240 V AC
- Virrankulutus: maks. 24 W
- Sisältää pariston kelloa varten, CR2032
- Käyttölämpötila-alue: 0° – +40°C
- Suojausluokitus: IP20
- Mitat: 212 x 212 x 64 mm
- Paino: 782 g (ilman kiintolevyä)
| Paino | 1 kg (kilogramma) |
|---|
NVR HAC (16-ch)
16-channel network video recorder with HDMI output
Video
Video input
16 channels
Recording resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output resolution
1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px
Live view / playback resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding
Format
H.265, H.264, JetSparrow
Capability
- 1 × channel at 8MP
- 3 × channel at 5MP
- 4 × channel at 4MP
- 4 × channel at 1080p
- 10 × channel at 720p
- 16 × channel at 1024 × 576 px
The width or height of the camera video resolution (each channel) cannot exceed 4096 pixels.
Live view window division
templates: 1, 4, 9, 16, 5+1, 7+1 views
custom: up to 10×10 views
Synchronous playback
16 channels
Intelligent video analytics
Motion detection
Ajax camera: 16 channels
NVR: 16 channels
NVR HAC features built-in software to detect movement in the frame. It is possible to switch between image analysis by NVR HAC or camera algorithms in an Ajax app.
AI object detection
Ajax camera: 16 channels
Interface
HDD/SSD
1 × SATA: supports drive with up to 16 TB capacity (2.5? or 3.5” form factor)
HDD or SSD is not included.
Network
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
USB
rear panel: 1 × USB 2.0 (Type-A)
side panel: 1 × USB 2.0 (Type-A)
To connect a keyboard, mouse, or a USB flash drive.
Network
Bandwidth
incoming: up to 80 Mbps
outgoing: up to 40 Mbps
Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
ONVIF®
conformant with ONVIF® Profile G and S
The device implements ONVIF® H.265 (HEVC) encoding, transmission of motion detection events, control over Wide Dynamic Range (WDR), and other image settings — not ONVIF® profile or add-on conformant.
Key features
Supported devices
- Ajax cameras
- IP cameras that conform to ONVIF® Profiles
- RTSP
Built-in video management system
- Integrated video wall interface with live camera feeds.
- Smart event filters for quick access to relevant footage.
- Interactive timeline with preview navigation for efficient playback and incident review.
Visual verification of Ajax system alarms
NVR HAC supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows for immediate intrusion verification by the operator.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner’s preferences.
Recommendations
The device operating voltage is 110–240 V~.
The device is designed for indoor installation only.
Power supply
Main
110–240 V, 50/60 Hz, 0.6 A
Power consumption
up to 24 W
Clock battery
CR2032 battery, 3 V
Only to power the system clock.
Enclosure
Dimensions
212 × 212 × 64 mm
Weight
782 g
Without a drive.
Operating temperature range
from 0 °C to +40 °C
Operating humidity
up to 75%
Protection class
IP20
Color
Black
White
Complete set
NVR HAC (16-ch)
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
Quick start guide
